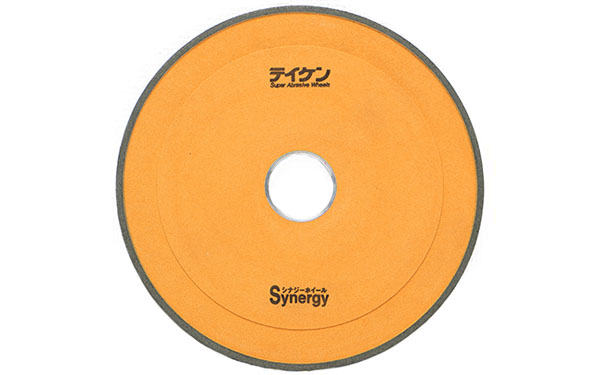

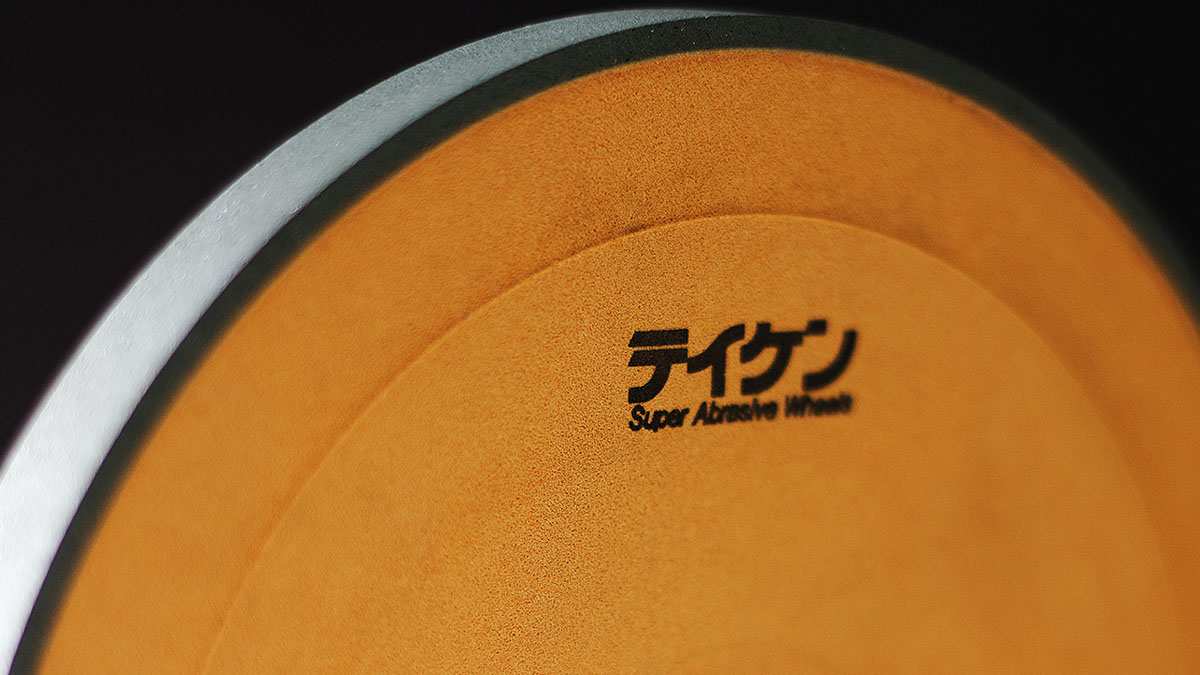

シナジーホイール
Features
●high dimensional accuracy
●reduce grinding noise
●good finish surface roughness
●decrease dimension error from temperature change.
[wheel spec：1A1 300x25x127 3χ TBN 140 L 75 BS2K3] [surface grinding]
[material：dies steel HRc60]
Synergy wheel has high grinding performance than the vitrified wheel and that tool life is improved.
[wheel spec：14A1300x32x127 x25ux3χxBT3°TBN 140 M 75 BS2K3]
[surface grinding]
[material：dies steel, DC53 HRc58]
Synergy wheel reduce warpage of thin materials than the resinoid type wheel.
[wheel spec：3A1 250x25x76.2 x10ux3χxBT2° TDC 400 N 100 BS2K2]
[cylindrical grinding]
[material: tungsten carbide]
The resinoid type wheel has metal body is difficult to machine workpiece with aiming dimension. But Synergy wheel is easy.
[wheel spec：14A1 180x10x31.75 5ux3χxBT3° TDC 270 L 75 BS2K2]
[surface grinding]
[material: tungsten carbide]
Reduce machining time by almost 50% of the after-process by changing Synergy wheel from the resinoid type wheel.
[wheel spec：1A1 180x10x31.75 3χ TD 1500 D 75 BS6K6]
[surface grinding]
[material: tungsten carbide]
Reduce machining time by almost 50% of the after-process by changing Synergy wheel from the resinoid type wheel.
