RZ SERIES

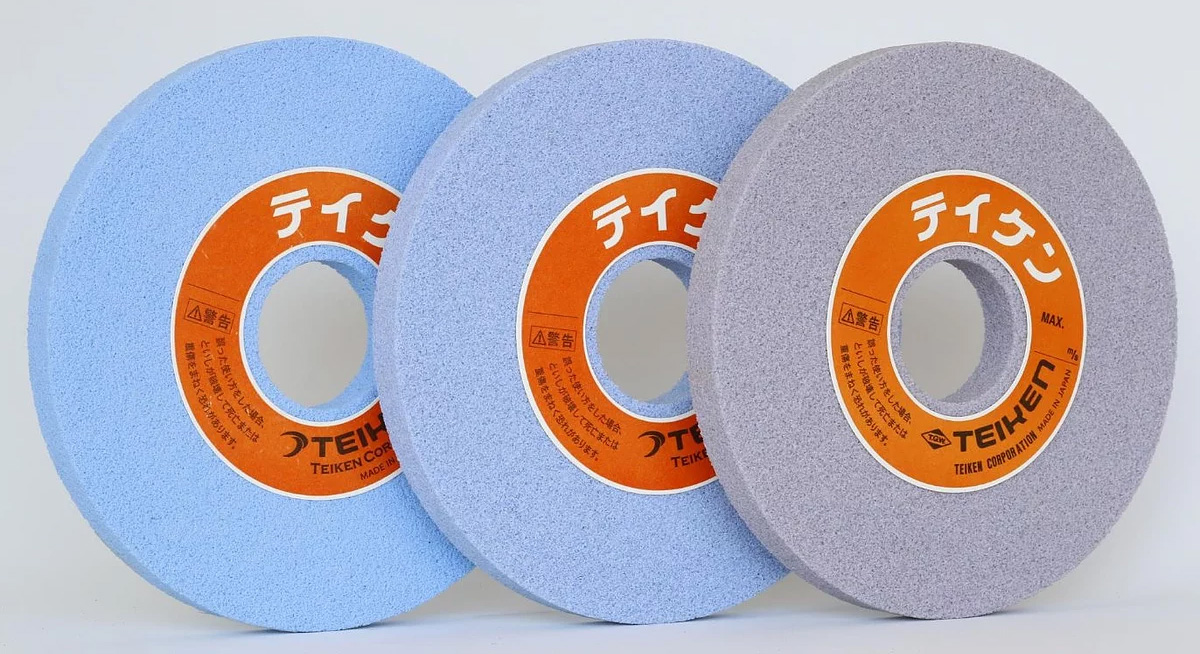

High Performance Wheel

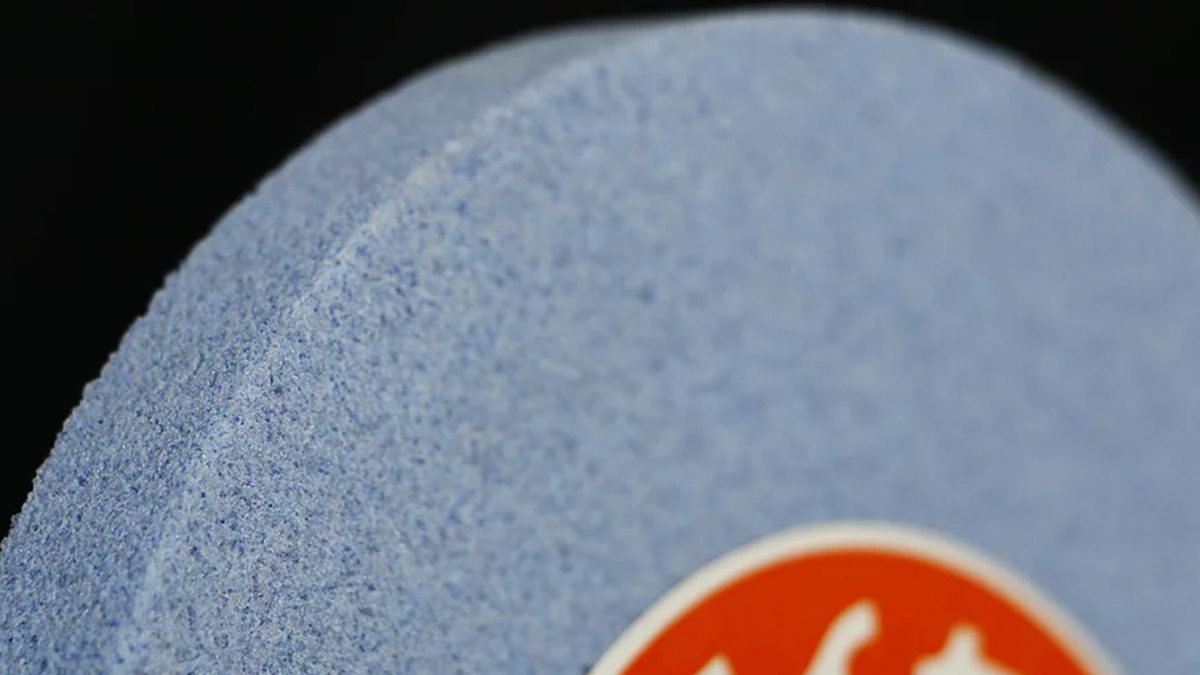

RZ wheels provide high quality grinding depending on the polycrystalline complex structure of the abrasive.

Both good cutting performance and few abrasive grain loss are achieved because of the grit's micro fracuturing.

Cutting performance of RZ grows several times as much as conventional WA wheel. Additionally, the RZ wheel is easier to be formed than CBN wheel.

We offer RZ, RZW, RZi, RZSS, and RZdolce according to user's grinding condition.

Features

●high quality grinding
●easy forming wheel
●low grinding resistance
●extending dressing interval

Movies



User's comments​

[wheel size:1A 305*38*127 RZ 46 H 9 V 30]
[grinding method:surface grinding]
[workpiece material:SKD11,HRC62]

High accuracy grinding is achieved by RZ46H wheel to grind 0.18mm for 0.2mm stock removal. Additionally, RZ wheel continues good cutting performance though the wheel size is smaller.RZ dresser also provides extending dressing interval.

[wheel size:7A 305*35*127 RZ 80 H 8 V 30]
[grinding method:cylindrical grinding]
[workpiece material:SKH51]
[workpiece size:φ50*40L]

RZ wheel provides reduction of dressing frequency and grinding time thanks to continuance of good cutting performance. RZ dresser lasts longer than single-point dresser because of the stability and durability.

[wheel size:1A 760*75*304.8 RZ 80 G 9 V 30]
[grinding method:cylindrical grinding]
[workpiece material:hard chrome plating material]
[workpiece size:φ310*1450L]

Thanks to good cutting performance, dressing interval extends.
