GRIDING METHOD



GRIDING METHOD

There are many surprising "shaving" and "polishing" methods

There are several methods of grinding and polishing. Here are some of them.

Internal grinding

A method for rotating a workpiece while holding a rotary shaft and grinding the workpiece by a grinding stone rotating at a high speed in the workpiece

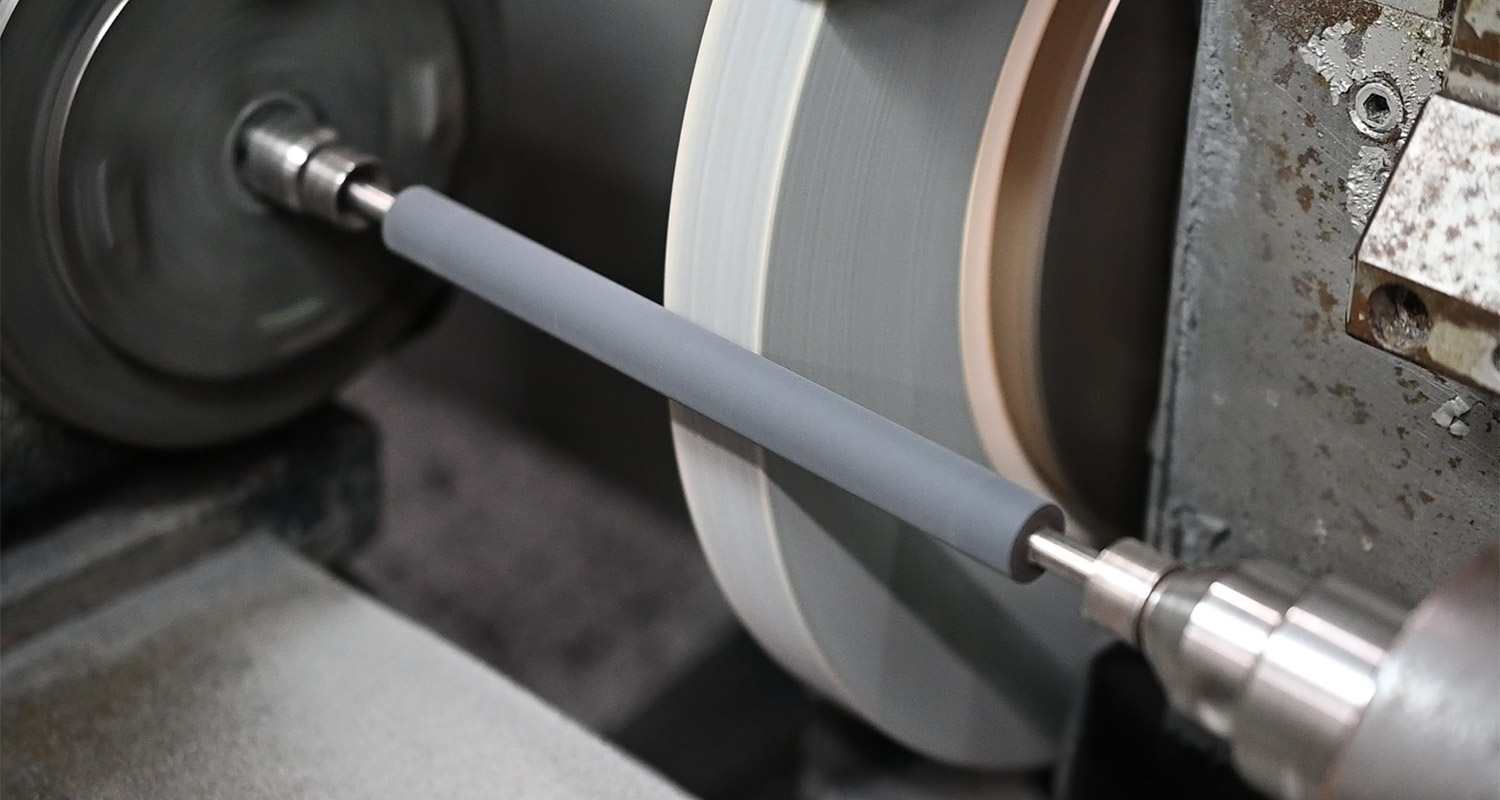

Cylindrical grinding

Method for grinding cylindrical workpiece by holding workpiece at center

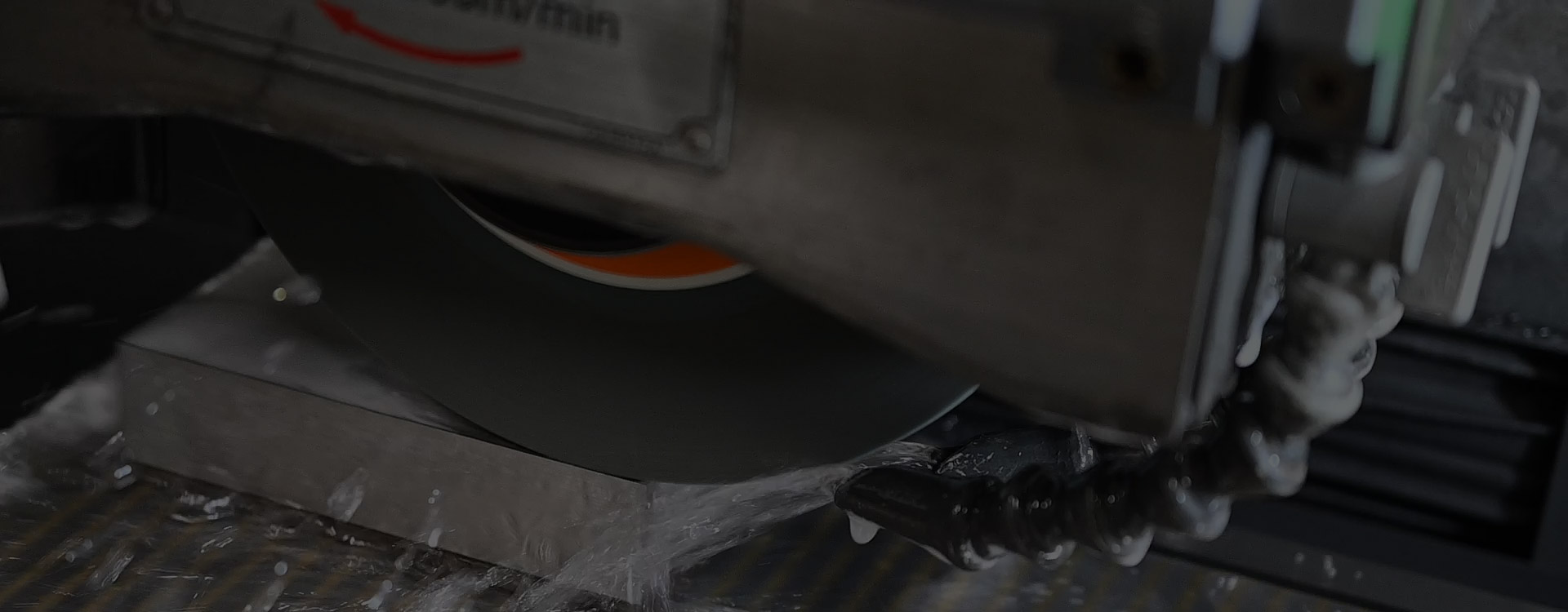

Surface grinding

It is the method that it has vertical axis and horizontal axis by fixing workpiece through magnet and processing plane with grinding stone.

Form grinding

It is a grinding method for molding grinding stone and transferring its shape to work. Any shape is possible if it can be molded

Creep feed grinding

It is a grinding method in which the feed speed is reduced by deep cutting, and a large amount of grinding fluid is used

Tool grinding

Regrinding with blade for drill, end mill, reamer, hob, etc

Cam grinding

In this method, a workpiece and a master cam are rotated together on a rocking table, and the workpiece and the master cam are processed into a prescribed shape by rocking motion by the contact of the master roller and the master cam placed at a fixed position

Profile grinding

It is a grinding method that an original drawing with a precisely enlarged workpiece shape, or a grinding method that processes with the grinding stone faithfully following the template, the machining shape is confirmed with a projector

Centerless grinding

In this method, a workpiece is put between a grinding stone and an adjusting stone (control stone) for feeding the workpiece, and the outer periphery of the workpiece is ground while being supported by a receiving plate (blade)

Double-headed grinding

There are a feed-through method, a carrier (rotary) method, and a reciprocating method in a method for simultaneously grinding two parallel surfaces of a workpiece
