PGG SERIES|PRODUCTS|Grinding Stone

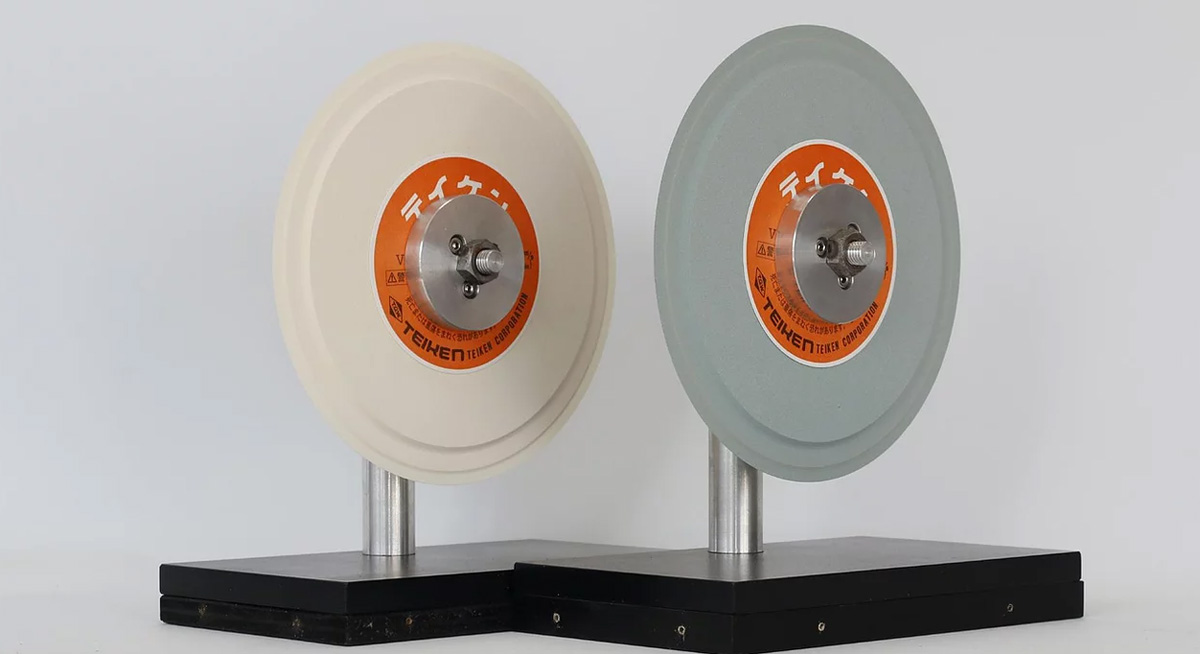

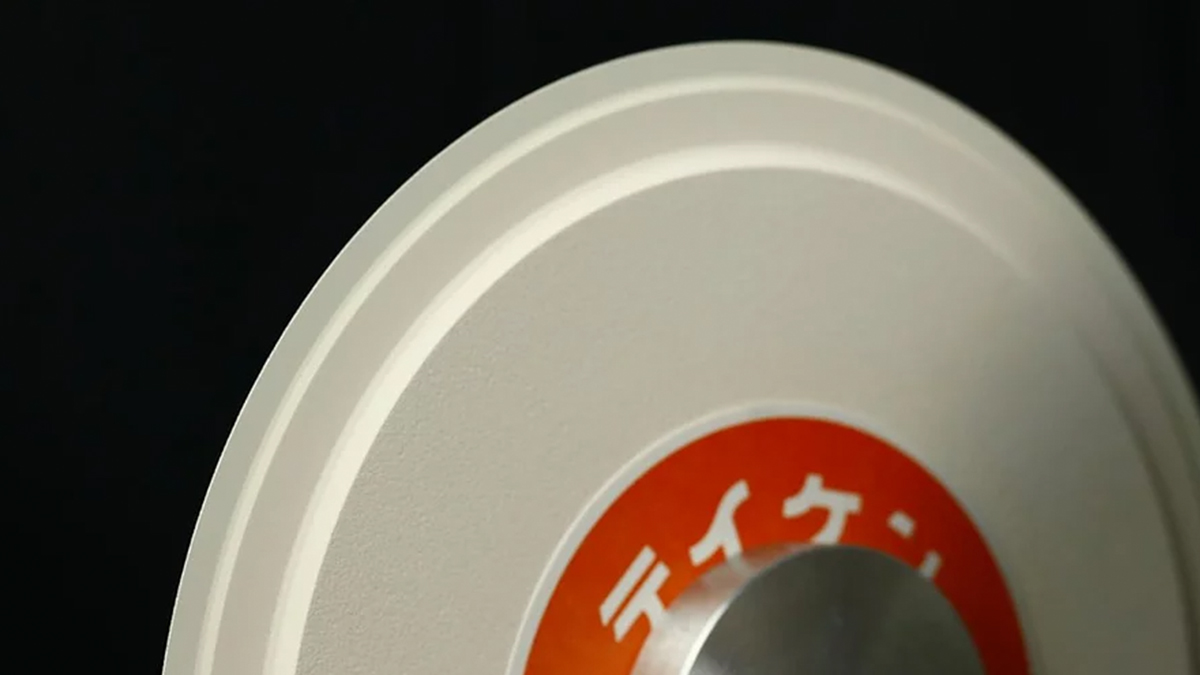

PGG SERIES

Top Share Series

PGG series is able to be shaped less than 0.1mm thick.
alumina-abrasive and vitrified-bond wheel
Standard JW series : #80-#1200JW80～1200
High-performance RZ series : #80-#220

alumina-and-silicon-carbide-abrasive and
vitrified-bond wheel
HW series for difficult-to-cut materials : #80-#800

User can choose product to suit their condition such as dresser, grinding machine and grinding method.Furthermore we provide suitable wheels to meet user's grinding condition.

Features

●highly easily-shaped
●decrease time of wheel shaping
●precision auto-dressing

Movies

User's comments

[wheel size：1A 180*6.4*31.75 JW 320 K 9 V 27]
[grinding method：surface grinding]
[workpiece material：vacuum hardening SKS3]

Because of JW wheel's stability, good cutting performance continues without getting holes. JW wheel provides high accuracy grinding and shapes corner easily.

[wheel size：1A 180*6.4*31.75 HW 400 L 10 V 29]
[grinding method：surface grinding]
[workpiece material：SKH51]
[grinding condition：groove grinding, 0.6mm in width, 1mm in depth, 100L in length]

HW400L provides reduction of grinding time because the amount of dressing is 50mu and shaping corner is easy.
